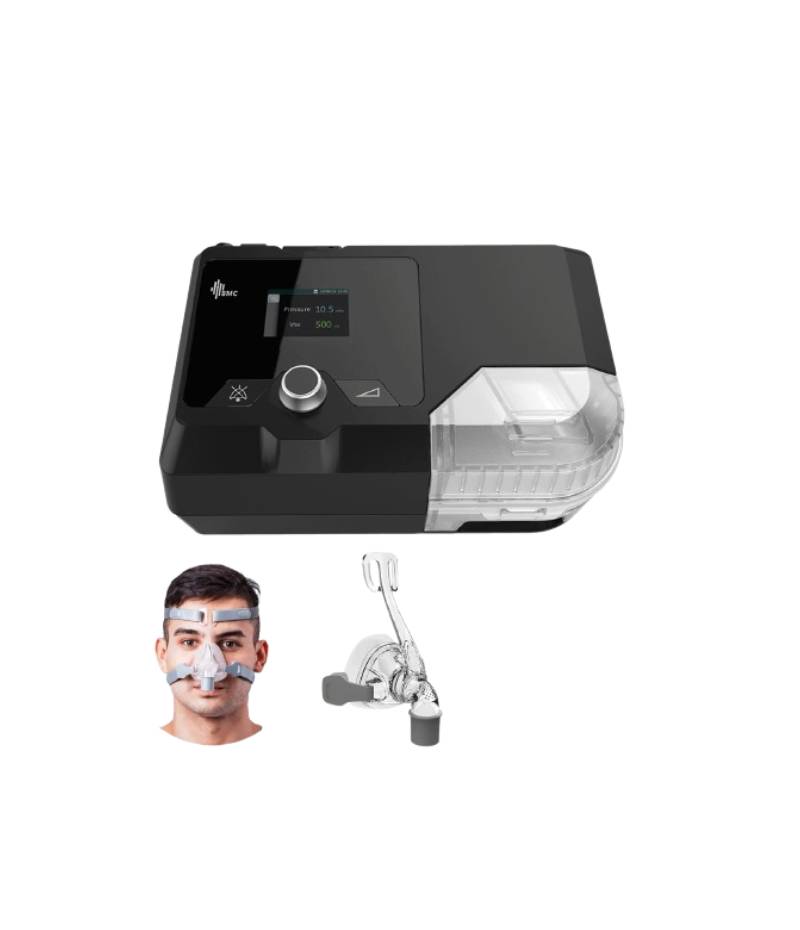

CPAP Machine – Auto CPAP System ( With Mask )

Affable appearance & Easy operation

Designed with integrated humidifier, RESmart G2S is smaller,
lighter and more affable.
2.4-inch color screen with user friendly interface.
3-button control panel, simple and easy to use.
The water chamber with drawing structure and opening cover,
is more convenient to fill water and clean.

Excellent comfort features

Newly designed integrated humidifier has large heating plate (>
50 cm2), which ensures excellent humidifying capacity and
improves comfort.
Reslex exhalation pressure release feature let you fall asleep
at a lower pressure easily.
Auto on/off feature
15 mm tubing supported.

Powerful data transfer/retrieval solution

SD Card
GPRS Kit
Wi-Fi Kit
iCode / iCode QR / iCode QR+

Various way of Sleep Report review

Quick Report through Device Screen
BMCares App
BMCares Cloud Platform
iCode web version (www.bmc-icode.com)
RESmart nPAP Data Analysis Software (PC software)
RESmart Software web version
(www.icodeconnect.com/quick/info)

Automatic leak compensation
The pressure error ≤ ± 1 hPa when the air leakage is no
more than 70 L/min.

Pressure
Range: 0 to 20 hPa
Margin of Error: ± (0.4 hPa + 4%)

SpO2
Range: 35% to 100%
The margin of error for SpO2 between 70% and 100% is ± 3%.
No strict accuracy requirements for SpO2 below 70%.

Pulse Rate
Range: 30 to 240 BPM
Margin of Error: ±2%

Wavelengths
Red: 663 nanometers
Infrared: 890 nanometers

Maximal Optical Output Power
Less than 1.5 mw maximum average.

Tube
Length: 6 ft. (1.83 m)

Maximum Delivered Gas Temperature
≤ 43℃

The Form and the Dimensions of the Patient
Connection Port
The 22 mm conical air outlet complies with ISO 5356-1.
