Medical Oxygen Concentrators

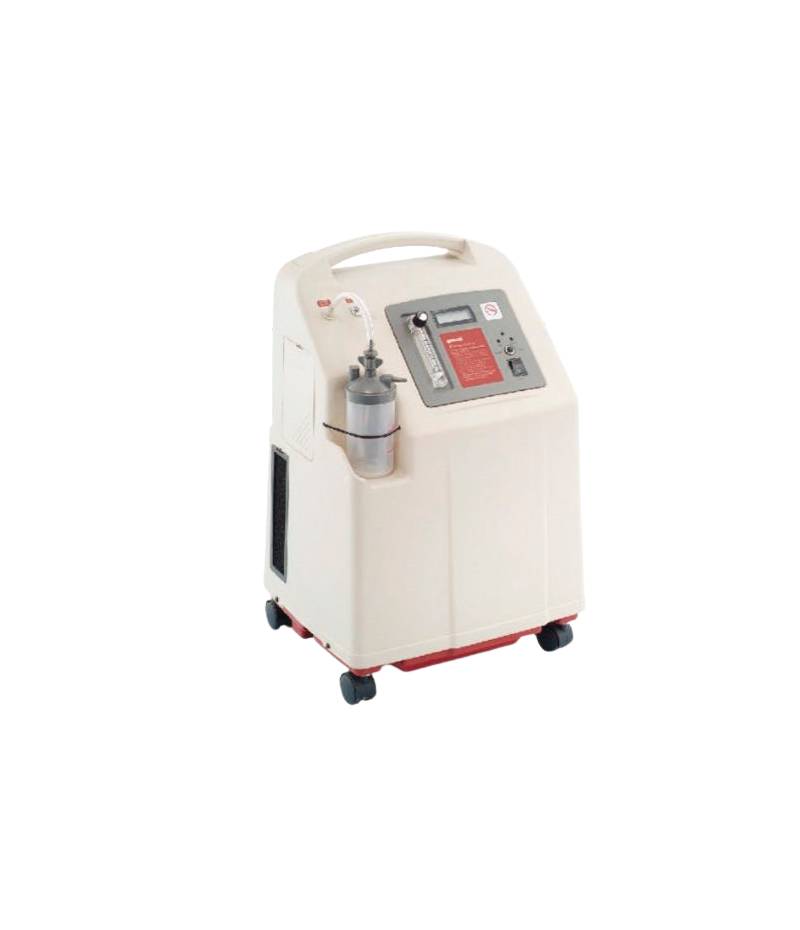

Yuwell 7F-5 Oxygen Concentrator is a compact with 5 liters/minute capacity. This features a self-diagnosis system and comes with multiple safety alarms. Oxygen failure alarm – continuously monitors quality of oxygen generated.

1、cumulative time function；
2、Exceed press safety valve helping safe ensure.
3、Install power cut warning function.
4、high pressure and low pressure alarming function
5、（7F-5 Double flux) shunt design, two users are provided with oxygen at the same time.

Pressure cycle failure alarm, Power outage alarm for overheating and Compressor failure alarm. The specifications include Noise level- less than 53 dBA, Output Pressure- 40 to 70Kpa, Oxygen Output- 0.5 to 5L/minute, Oxygen concentration of above 90% – 95.5%. Purity of Oxygen is above 90% even at 5 Liters/minute flow rate

Model Number: 7F-5A

Power supply：～220V±22V，50Hz±1Hz
Size：445×372×680mm
Oxygen flow：1～5L/min
Oxygen concentration：≥90%
Weight：28kg
Input power：500VA
Output pressure：30～70kPa
Operation noise：≤60dB(A)
