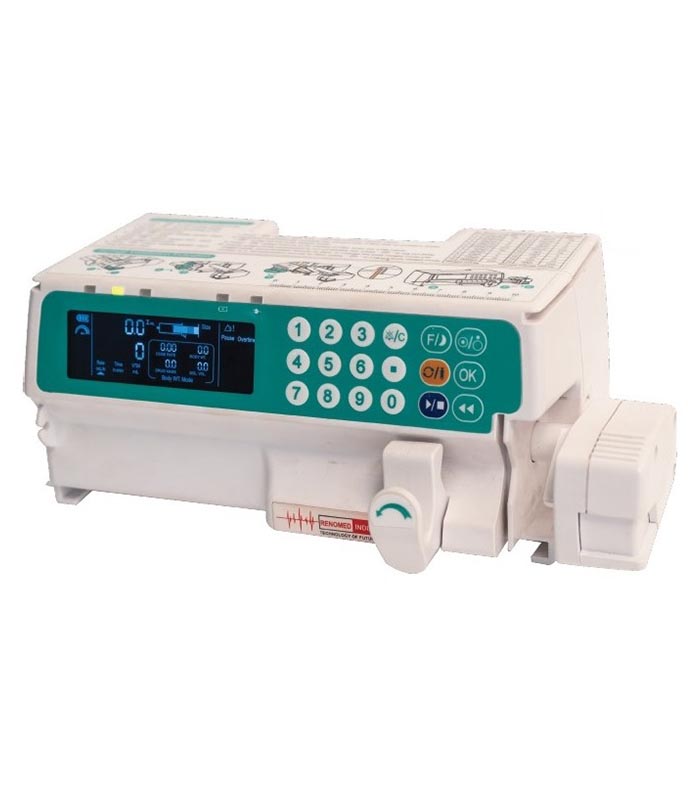

SYRINGE PUMP

Specifications –

• Dimension: 278x145mmx106mm(WxDxH)
• Weight: 1.5kg
• Power Supply: 100V-240V.50/60Hz
• Power Consumption: <55va
• Syringe Requirement: Refer to “Section 11 Notes on
Disposable Syringes”
• Maximum Flow Rates: 1800(ml/h) 1800(ml/h)
• Syringe Size: 2ml, 5ml, 10ml, 20ml, 30ml and 50ml
• Usage/Application: Drug Delivery
• Accuracy: +/- 2%
• Number of Syringes: 1.0
• Infusion Mode: Time Mode, Rate mode, Dose Mode
• Weight: 1.5 kg
• Display type: 2.5 inch
• Power Source: Direct and Battery back up
• Dimension: 278 mm x 145 mm x 106 mm (W X D X H)
• Power Supply: 100 V to 220 V, 50/60 Hz
• Battery Type: Lithium ion battery

• Pressure Sensing: Max 100kPa +/- 20kPa, Min. 50kPa
+/- 20kPa
• Space Occupied: 278 mm x 145 mm x 106 mm
• Protection Class: Class II, CF
• Rate Accuracy: +/- 2%
• Atmospheric Pressure: 700hPa~1060hPa
• Working Temperature: 5 Degree C to 40 Degree
• Alarm: Various Audio and Visual Alarms
• Certification: ISO 9001 2008
• Purge Rate: Different for Different Syringe Size
• Volume Limit: 0.1~9999.9ml, Step Size 0.1ml
• Total Injection: 0.1~9999.9ml
• KVO Speed: Different for Different Syringe size
• Power Consumption: 55va
• Temperature: Strong – 20 Degree C ~ + 60 Degree C
• Humidity: 20% ~ 90%
• Infusion Rate: Maximum 1800 ml/hour
• Battery Backup: 5 – 7 Hours battery back up
